Aluminum electrolytic capacitor with 3.9mF capacitance and 35V DC rating. Features 14mR ESR and 3.735A ripple current capability. Radial package with 7.5mm lead pitch, 18mm diameter, and 40mm height. Operates from -55°C to 105°C with a 5000-hour lifespan at rated conditions. Through-hole mounting for PCB applications.
PackageRadial
Voltage35V
Capacitance3.9mF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1V392 technical specifications.
General
| Capacitance | 3.9mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| ESR (Equivalent Series Resistance) | 14mR |
| Height | 40mm |
| Height - Seated (Max) | 1.575inch |
| Impedance | 14mR |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 3uA |
| Length | 40mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 3.735A |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1V392 Datasheet
Download the complete datasheet for Panasonic EEU-FC1V392 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

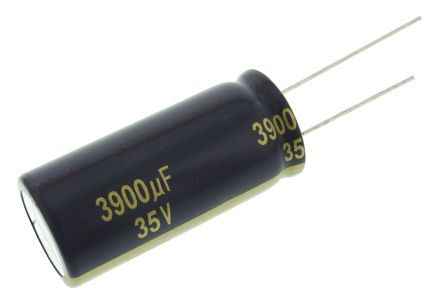

Product Images
