Aluminum electrolytic capacitor with 47µF capacitance and 35V DC rated voltage. Features 20% tolerance, 350mΩ ESR, and 290mA ripple current. Radial package with 2.5mm lead pitch, 0.5mm lead diameter, and dimensions of 6.3mm diameter by 11.2mm height. Operates from -55°C to 105°C with a 1000-hour life rating. Through-hole mounting, RoHS compliant, and AEC-Q200 qualified.
PackageRadial
Voltage35V
Storage11.2mm
Capacitance47uF
Quick Jump:
Technical Specifications
Panasonic EEU-FC1V470 technical specifications.
General
Capacitance
47uF
Package/Case
Radial
Construction
RADIAL
Diameter
6.3mm
Dissipation Factor
12%
ESR (Equivalent Series Resistance)
350mR
Height
11.2mm
Impedance
350mR
Lead Diameter
0.5mm
Lead Free
Lead Free
Lead Pitch
2.5mm
Leakage Current
3uA
Length
11mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
290mA
RoHS Compliant
Yes
Series
FC
Size
11.2mm
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FC1V470 Datasheet
Download the complete datasheet for Panasonic EEU-FC1V470 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

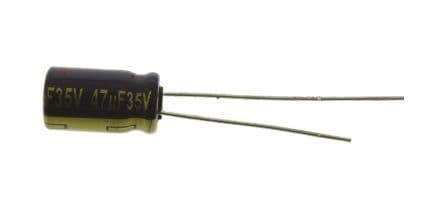

Product Images
