Aluminum electrolytic capacitor, 680µF capacitance, 35V DC rated voltage, 20% tolerance. Features 35mΩ ESR and 1.815A ripple current. Radial package with 5mm lead pitch, 0.6mm lead diameter, and 10mm x 30mm dimensions. Operates from -55°C to 105°C with a 3000-hour life rating. Through-hole mounting, lead-free, RoHS compliant.
PackageRadial
Voltage35V
Capacitance680uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1V681L technical specifications.
General
Capacitance
680uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
35mR
Height
30mm
Height - Seated (Max)
1.181inch
Impedance
35mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
3uA
Length
30mm
Life (Hours)
3000Hour
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
1.815A
Ripple Current (AC)
1.815A
RoHS Compliant
Yes
Series
FC
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FC1V681L Datasheet
Download the complete datasheet for Panasonic EEU-FC1V681L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

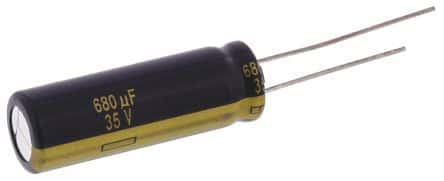

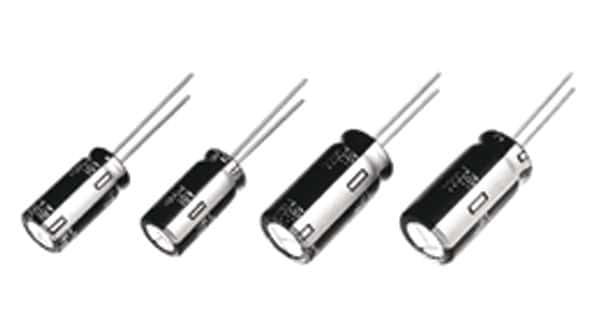

Product Images
