Aluminum electrolytic capacitor with 220µF capacitance and 100V voltage rating. Features 20% tolerance, 87mΩ ESR, and 1.04A ripple current. This radial component offers a 5000-hour life at 105°C and operates from -55°C to 105°C. Dimensions are 12.5mm diameter and 35mm height, with a 5mm lead pitch for through-hole PCB mounting.
PackageRadial
Voltage100V
Storage35mm
Capacitance220uF
Quick Jump:
Technical Specifications
Panasonic EEU-FC2A221L technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Construction
RADIAL
Diameter
12.5mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
87mR
Height
35mm
Height - Seated (Max)
1.378inch
Impedance
87mR
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
3uA
Length
35mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
1.04A
Ripple Current (AC)
1.04A
RoHS Compliant
Yes
Series
FC
Size
35mm
Termination
Radial
Tolerance
20%
Voltage
100V
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FC2A221L Datasheet
Download the complete datasheet for Panasonic EEU-FC2A221L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

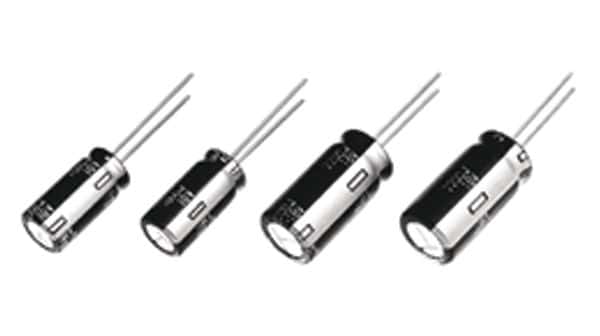

Product Images
