Aluminum electrolytic capacitor, 270µF capacitance, 100V DC rated voltage, and 20% tolerance. Features a radial package with a 5mm lead pitch, 12.5mm diameter, and 40mm height. Offers 1.13A ripple current, 72mΩ ESR, and a 5000-hour life at 105°C. Through-hole mounting, lead-free, and RoHS compliant.
PackageRadial
Voltage100V
Capacitance270uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Panasonic EEU-FC2A271L technical specifications.
General
| Capacitance | 270uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 72mR |
| Height | 40mm |
| Height - Seated (Max) | 1.575inch |
| Impedance | 72mR |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 3uA |
| Length | 40mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.13A |
| Ripple Current (AC) | 1.13A |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC2A271L Datasheet
Download the complete datasheet for Panasonic EEU-FC2A271L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

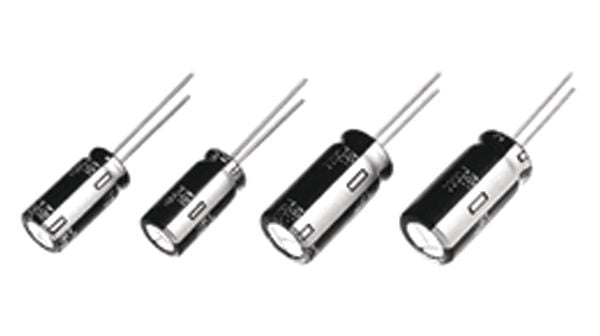

Product Images
