Aluminum electrolytic capacitor with 33µF capacitance and 100V DC rated voltage. Features a 20% tolerance, 450mΩ ESR, and 340mA ripple current. This radial component has a 3.5mm lead pitch, 8mm diameter, and 15mm height, designed for through-hole PCB mounting. Operating temperature range is -55°C to 105°C with a 2000-hour life rating.
PackageRadial
Voltage100V
Capacitance33uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Panasonic EEU-FC2A330L technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 7% |
| ESR (Equivalent Series Resistance) | 450mR |
| Height | 15mm |
| Impedance | 450mR |
| Lead Diameter | 0.6mm |
| Lead Pitch | 3.5mm |
| Leakage Current | 3uA |
| Length | 15mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 340mA |
| Ripple Current (AC) | 340mA |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC2A330L Datasheet
Download the complete datasheet for Panasonic EEU-FC2A330L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

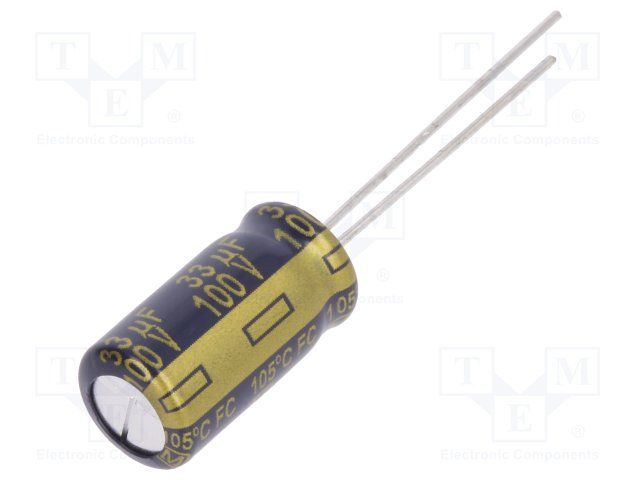

Product Images
