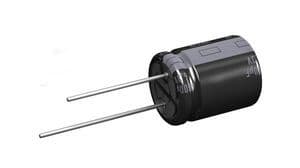

Radial aluminum electrolytic capacitor, 100µF capacitance, 10V DC rated voltage, with a 20% tolerance. Features 300mΩ ESR and impedance, 280mA ripple current, and a 2000-hour life at 105°C. Dimensions include a 5mm diameter, 11mm height, 2mm lead pitch, and 0.5mm lead diameter. Lead-free and RoHS compliant.
Sign in to ask questions about the Panasonic EEU-FM1A101 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEU-FM1A101 technical specifications.
| Capacitance | 100uF |
| Construction | RADIAL |
| Diameter | 5mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 300mR |
| Height | 11mm |
| Impedance | 300mR |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Length | 17mm |
| Lead Pitch | 2mm |
| Leakage Current | 10nA |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Outside Diameter | 5mm |
| Reach SVHC Compliant | No |
| Ripple Current | 280mA |
| Ripple Current (AC) | 280mA |
| RoHS Compliant | Yes |
| Series | FM |
| Termination | Through Hole |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| RoHS | Compliant |
