1000µF, 16V radial aluminum electrolytic capacitor with 20% tolerance. Features 19mΩ ESR, 2.18A ripple current, and 10nA leakage current. Operates from -40°C to 105°C with a 5000-hour life rating. Through-hole mounting, 10mm diameter, 20mm height, and 5mm lead pitch. RoHS compliant.
PackageRadial
Voltage16V
Storage20mm
Capacitance1mF
Quick Jump:
Technical Specifications
Panasonic EEU-FM1C102 technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dissipation Factor | 0.16% |
| ESR (Equivalent Series Resistance) | 19mR |
| Height | 20mm |
| Impedance | 19mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Length | 17mm |
| Lead Pitch | 5mm |
| Leakage Current | 10nA |
| Length | 20mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 2.18A |
| Ripple Current (AC) | 2.18A |
| RoHS Compliant | Yes |
| Series | FM |
| Size | 20mm |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| Voltage Rating (AC) | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FM1C102 Datasheet
Download the complete datasheet for Panasonic EEU-FM1C102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

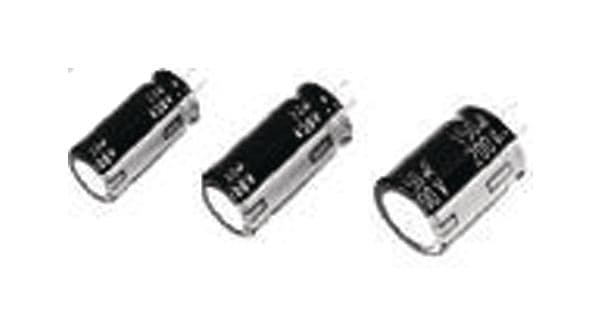

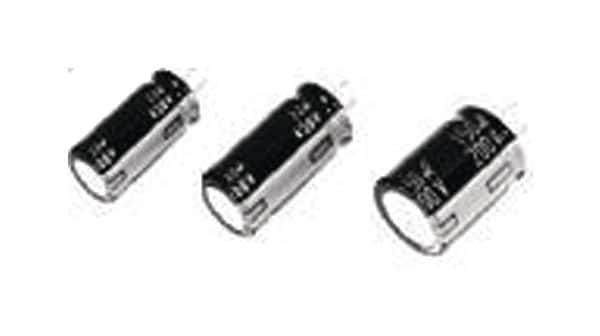

Product Images
