Aluminum electrolytic capacitor with 1.2mF capacitance and 16V DC rating. Features 20% tolerance, 18mΩ ESR, and 2.47A ripple current capability. Designed for through-hole mounting with a 5mm lead pitch and 10mm diameter. Operates from -40°C to 105°C with a 5000-hour life expectancy. Supplied in an ammo pack.
PackageRadial
Capacitance1.2mF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EEU-FM1C122LB technical specifications.
General
| Capacitance | 1.2mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dissipation Factor | 0.16% |
| ESR (Equivalent Series Resistance) | 18mR |
| Height | 25mm |
| Height - Seated (Max) | 1.063inch |
| Impedance | 18mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Length | 25mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 2.47A |
| RoHS Compliant | Yes |
| Series | FM |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FM1C122LB Datasheet
Download the complete datasheet for Panasonic EEU-FM1C122LB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

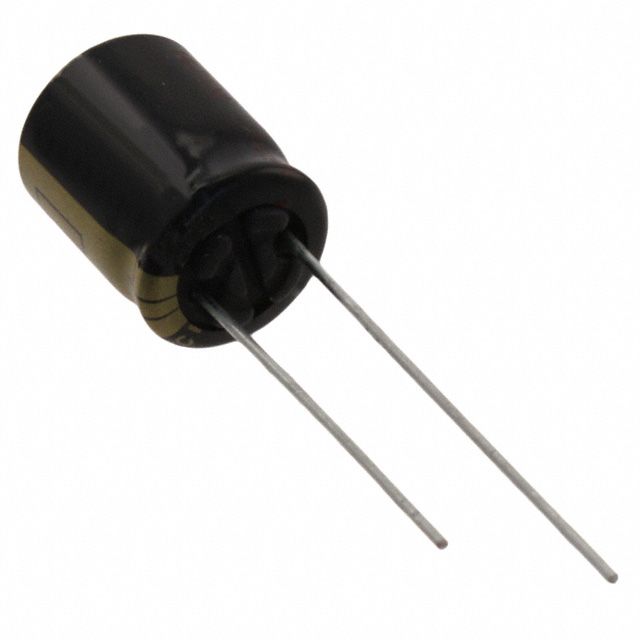

Product Images
