100µF, 25V radial aluminum electrolytic capacitor with 20% tolerance. Features 130mΩ ESR, 455mA ripple current, and a 2000-hour life at 105°C. Through-hole mounting with a 2.5mm lead pitch and 0.5mm lead diameter. Dimensions are 6mm diameter and 11.2mm height. Lead-free and RoHS compliant.
Voltage25V
Storage11.2mm
Capacitance100uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEU-FM1E101 technical specifications.
General
Capacitance
100uF
Construction
RADIAL
Diameter
6mm
Dissipation Factor
14%
ESR (Equivalent Series Resistance)
130mR
Height
11.2mm
Impedance
130mR
Lead Diameter
0.5mm
Lead Free
Lead Free
Lead Length
17mm
Lead Pitch
2.5mm
Leakage Current
10nA
Length
11mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Yes
Ripple Current
455mA
Ripple Current (AC)
455mA
RoHS Compliant
Yes
Series
FM
Size
11.2mm
Termination
Radial
Tolerance
20%
Voltage
25V
Voltage Rating
25V
Voltage Rating (AC)
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FM1E101 Datasheet
Download the complete datasheet for Panasonic EEU-FM1E101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

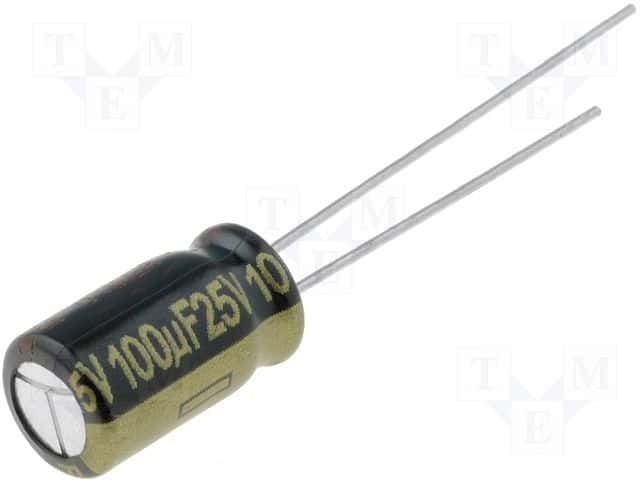

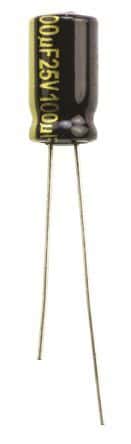

Product Images
