Radial aluminum electrolytic capacitor with 1800µF capacitance and 25V DC rated voltage. Features 17mΩ ESR, 3.3A ripple current, and a dissipation factor of 0.14%. Operates from -40°C to 105°C with a 5000-hour life expectancy. Through-hole mounting with a 7.5mm lead pitch and 0.8mm lead diameter. RoHS compliant.
PackageRadial
Voltage25V
Capacitance1.8mF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEU-FM1E182S technical specifications.
General
Capacitance
1.8mF
Package/Case
Radial
Construction
RADIAL
Diameter
16mm
Dissipation Factor
0.14%
ESR (Equivalent Series Resistance)
17mR
Height
20mm
Impedance
17mR
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
7.5mm
Lead/Base Style
Straight
Leakage Current
3uA
Length
20mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
3.3A
Ripple Current (AC)
3.3A
RoHS Compliant
Yes
Series
FM
Termination
Radial
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FM1E182S Datasheet
Download the complete datasheet for Panasonic EEU-FM1E182S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

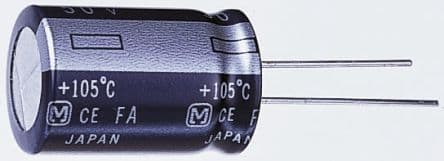

Product Images
