50V 470uF radial aluminum electrolytic capacitor with 20% tolerance. Features 22mΩ ESR, 2.26A ripple current, and 235uA leakage current. Operates from -40°C to 105°C with a 5000-hour life rating. Through-hole mounting with a 5mm lead pitch and 0.6mm lead diameter. RoHS compliant.
PackageRadial
Voltage50V
Capacitance470uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEU-FM1H471 technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
RADIAL
Diameter
12.5mm
Dielectric Material
Aluminium
Dissipation Factor
10%
ESR (Equivalent Series Resistance)
22mR
Height
20mm
Impedance
22mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Length
17mm
Lead Pitch
5mm
Leakage Current
235uA
Length
20mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
2.26A
RoHS Compliant
Yes
Series
FM
Termination
Radial
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FM1H471 Datasheet
Download the complete datasheet for Panasonic EEU-FM1H471 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

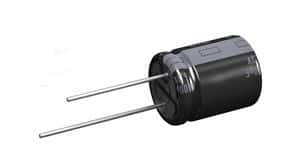

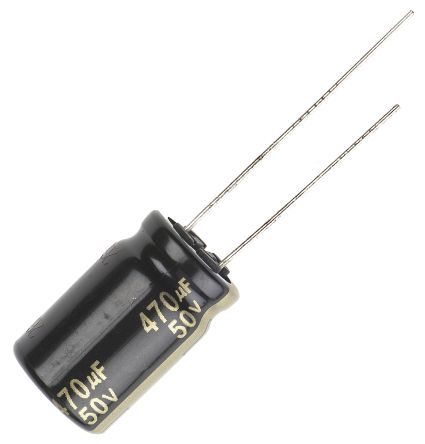

Product Images
