Aluminum electrolytic capacitor with 470uF capacitance and 20% tolerance. Features a 50V DC voltage rating, 105°C maximum operating temperature, and 5000-hour life. Radial package with 5mm lead pitch, 0.6mm lead diameter, and 12mm diameter. Includes 2.26A ripple current capability and 22mR ESR. Through-hole, PCB mountable, RoHS compliant, and lead-free.
PackageRadial
Capacitance470uF
Voltage Rating50V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic EEU-FM1H471B technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Diameter | 12mm |
| Dissipation Factor | 0.1% |
| ESR (Equivalent Series Resistance) | 22mR |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Impedance | 22mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Length | 20mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 2.26A |
| RoHS Compliant | Yes |
| Series | FM |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FM1H471B Datasheet
Download the complete datasheet for Panasonic EEU-FM1H471B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

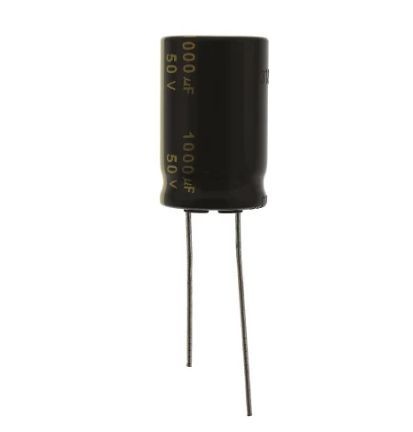

Product Images
