Aluminum electrolytic capacitor with 560µF capacitance and 50V DC rated voltage. Features 20% tolerance, 18mΩ ESR, and 2.66A ripple current. Operating temperature range from -40°C to 105°C with a 7000-hour lifespan. Radial package with 5mm lead pitch, suitable for through-hole PCB mounting. RoHS compliant and lead-free.
PackageRadial
Voltage50V
Capacitance560uF
Voltage Rating50V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic EEU-FM1H561 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic EEU-FM1H561 technical specifications.
General
| Capacitance | 560uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dissipation Factor | 0.1% |
| ESR (Equivalent Series Resistance) | 18mR |
| Height | 25mm |
| Impedance | 18mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 3uA |
| Length | 25mm |
| Life (Hours) | 7000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 2.66A |
| Ripple Current (AC) | 2.66A |
| RoHS Compliant | Yes |
| Series | FM |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FM1H561 Datasheet
Download the complete datasheet for Panasonic EEU-FM1H561 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

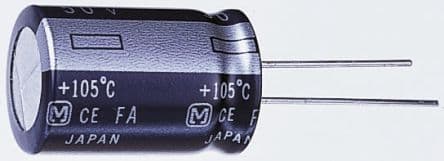

Product Images
