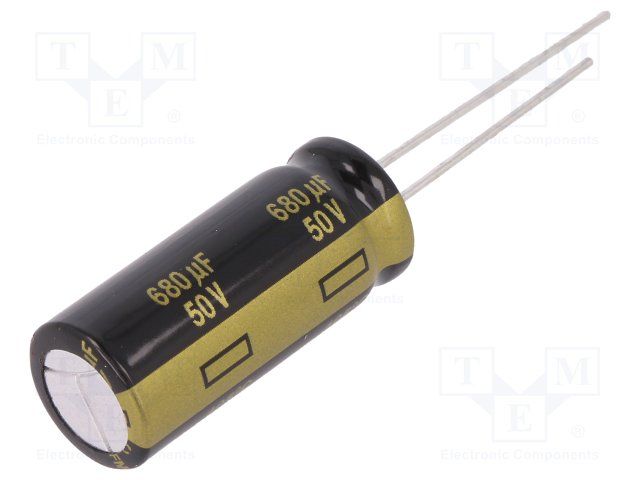

Aluminum electrolytic capacitor with 680µF capacitance and 50V DC rated voltage, featuring 20% tolerance. This radial component offers 16mΩ ESR and 3.16A ripple current capability, operating from -40°C to 105°C with a 7000-hour lifespan. Designed for through-hole PCB mounting, it has a 5mm lead pitch and 0.8mm lead diameter.
PackageRadial
Voltage50V
Capacitance680uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEU-FM1H681L technical specifications.
General
| Capacitance | 680uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.1% |
| ESR (Equivalent Series Resistance) | 16mR |
| Height | 30mm |
| Impedance | 16mR |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 340uA |
| Length | 30mm |
| Life (Hours) | 7000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| Ripple Current | 3.16A |
| RoHS Compliant | Yes |
| Series | FM |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FM1H681L Datasheet
Download the complete datasheet for Panasonic EEU-FM1H681L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
