Aluminum electrolytic capacitor with 1000 µF capacitance and 20% tolerance. Features a 35 VDC voltage rating, 15 mΩ ESR, and 15 mΩ impedance. Designed for through-hole PCB mounting with a radial package, 5mm lead pitch, and 0.6mm lead diameter. Offers a ripple current of 3.19A and a life expectancy of 7000 hours at 105°C. RoHS compliant and lead-free.
PackageRadial
Voltage35V
Capacitance1mF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-FM1V102 technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 15mR |
| Height | 25mm |
| Impedance | 15mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Length | 17mm |
| Lead Pitch | 5mm |
| Leakage Current | 350uA |
| Length | 25mm |
| Life (Hours) | 7000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 3.19A |
| RoHS Compliant | Yes |
| Series | FM |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| Voltage Rating (AC) | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FM1V102 Datasheet
Download the complete datasheet for Panasonic EEU-FM1V102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

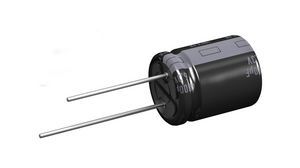

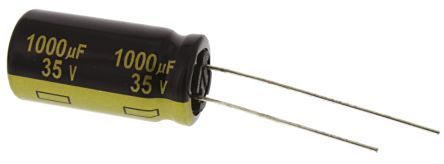

Product Images
