Aluminum electrolytic capacitor with 1200µF capacitance and 35V DC rated voltage. Features 20% tolerance, 13mΩ ESR, and 3.63A ripple current capability. This radial component measures 12.5mm in diameter and 30mm in height, with a 5mm lead pitch for through-hole PCB mounting. Operating temperature range is -40°C to 105°C, with a rated life of 7000 hours at maximum conditions. Lead-free and RoHS compliant.
PackageRadial
Voltage35V
Capacitance1.2mF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-FM1V122L technical specifications.
General
| Capacitance | 1.2mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 13mR |
| Height | 30mm |
| Impedance | 13mR |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 420uA |
| Length | 30mm |
| Life (Hours) | 7000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| Ripple Current | 3.63A |
| RoHS Compliant | Yes |
| Series | FM |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FM1V122L Datasheet
Download the complete datasheet for Panasonic EEU-FM1V122L to view detailed technical specifications.
No datasheet is available for this part.

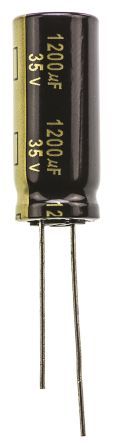

Product Images
