Aluminum electrolytic capacitor with 1.5mF capacitance and 10V DC rated voltage. Features 20% tolerance, 30mΩ ESR, and 1.56A ripple current. Designed for through-hole PCB mounting with a radial package measuring 8mm diameter and 20mm height. Operating temperature range is -40°C to 105°C with a lifespan of 9000 hours.
PackageRadial
Voltage10V
Capacitance1.5mF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEU-FR1A152L technical specifications.
General
| Capacitance | 1.5mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 30mR |
| Height | 20mm |
| Impedance | 30mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 150uA |
| Length | 20mm |
| Life (Hours) | 9000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.56A |
| RoHS Compliant | Yes |
| Series | FR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FR1A152L Datasheet
Download the complete datasheet for Panasonic EEU-FR1A152L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

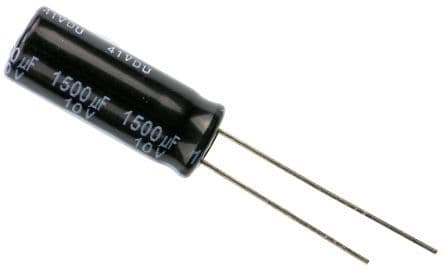

Product Images
