Aluminum electrolytic capacitor with 1.8mF capacitance and 10V DC rating. Features 20% tolerance, 20mΩ ESR, and 2.18A ripple current capability. Designed for through-hole PCB mounting with a 5mm lead pitch and radial termination. Operates from -40°C to 105°C with a 10,000-hour lifespan. Dimensions are 10mm diameter and 20mm height.
PackageRadial
Voltage10V
Capacitance1.8mF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEU-FR1A182 technical specifications.
General
| Capacitance | 1.8mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 20mR |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Impedance | 20mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Length | 20mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 2.18A |
| RoHS Compliant | Yes |
| Series | FR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FR1A182 Datasheet
Download the complete datasheet for Panasonic EEU-FR1A182 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

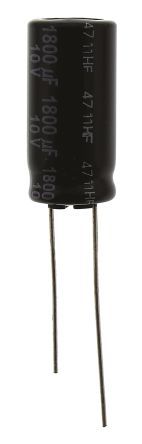

Product Images
