Radial aluminum electrolytic capacitor with 4700µF capacitance and 10V DC voltage rating. Features 17mΩ ESR, 3.3A ripple current, and a 10,000-hour life at 105°C. This through-hole component has a 16mm diameter, 20mm height, and 7.5mm lead pitch. RoHS compliant and designed for general applications.
PackageRadial
Voltage10V
Capacitance4.7mF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEU-FR1A472S technical specifications.
General
| Capacitance | 4.7mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 17mR |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Impedance | 17mR |
| Lead Diameter | 0.8mm |
| Lead Pitch | 7.5mm |
| Length | 20mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 3.3A |
| RoHS Compliant | Yes |
| Series | FR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FR1A472S Datasheet
Download the complete datasheet for Panasonic EEU-FR1A472S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

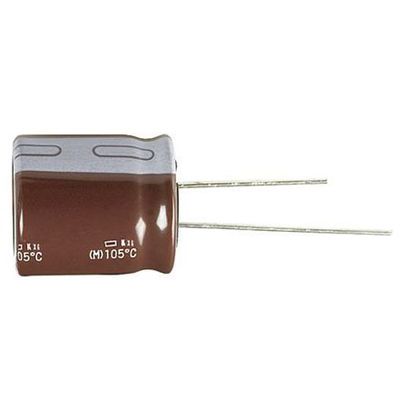

Product Images
