Radial aluminum electrolytic capacitor with 1000 µF capacitance and 16V DC voltage rating. Features 30mΩ ESR and impedance, 1.56A ripple current, and a 9000-hour life at 105°C. This through-hole component has a 3.5mm lead pitch and 8mm diameter, suitable for PCB mounting. RoHS compliant.
PackageRadial
Voltage16V
Capacitance1mF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEU-FR1C102L technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| ESR (Equivalent Series Resistance) | 30mR |
| Height | 20mm |
| Impedance | 30mR |
| Lead Diameter | 0.6mm |
| Lead Pitch | 3.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 160uA |
| Length | 20mm |
| Life (Hours) | 9000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.56A |
| RoHS Compliant | Yes |
| Series | FR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FR1C102L Datasheet
Download the complete datasheet for Panasonic EEU-FR1C102L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

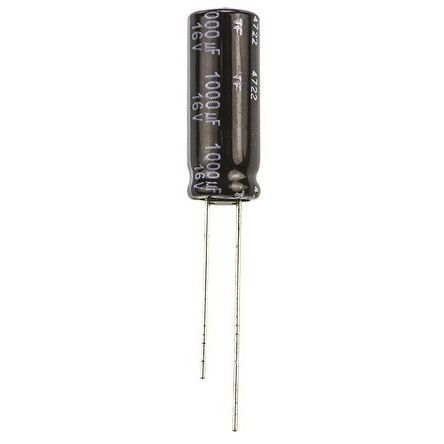

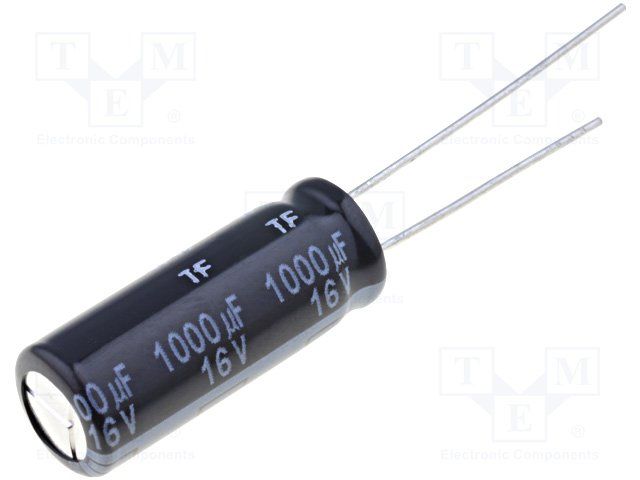

Product Images
