General purpose aluminum electrolytic capacitor with 220µF capacitance and 16V voltage rating. Features 20% tolerance, 130mΩ ESR, and 455mA ripple current. Radial package with 2.5mm lead pitch, 0.5mm lead diameter, and 6.3mm x 11.2mm dimensions. Operates from -40°C to 105°C with a 2000-hour life expectancy. Through-hole, PCB mountable and RoHS compliant.
PackageRadial
Voltage16V
Capacitance220uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEU-FR1C221 technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 6.3mm |
| ESR (Equivalent Series Resistance) | 130mR |
| Height | 11.2mm |
| Impedance | 130mR |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 35.2uA |
| Length | 11.2mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 455mA |
| RoHS Compliant | Yes |
| Series | FR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FR1C221 Datasheet
Download the complete datasheet for Panasonic EEU-FR1C221 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

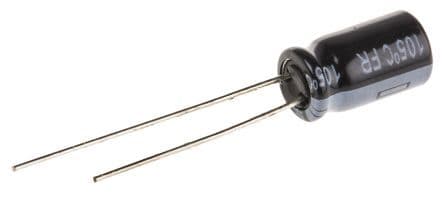

Product Images
