Radial leaded aluminum electrolytic capacitor with 470µF capacitance and 16V DC rated voltage. Features ±20% tolerance, 56mΩ ESR, and 950mA ripple current. Designed for through-hole PCB mounting with a 3.5mm lead pitch and 8mm diameter. Operates from -40°C to 105°C with a 6000-hour life rating at 105°C. RoHS compliant and lead-free.
PackageRadial
Voltage16V
Capacitance470uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEU-FR1C471 technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
RADIAL
Diameter
8mm
Dissipation Factor
16%
ESR (Equivalent Series Resistance)
56mR
Height
11.5mm
Height - Seated (Max)
0.512inch
Impedance
56mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
3.5mm
Lead/Base Style
Straight
Leakage Current
75.2uA
Length
11.5mm
Life (Hours)
6000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
950mA
RoHS Compliant
Yes
Series
FR
Termination
Radial
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FR1C471 Datasheet
Download the complete datasheet for Panasonic EEU-FR1C471 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

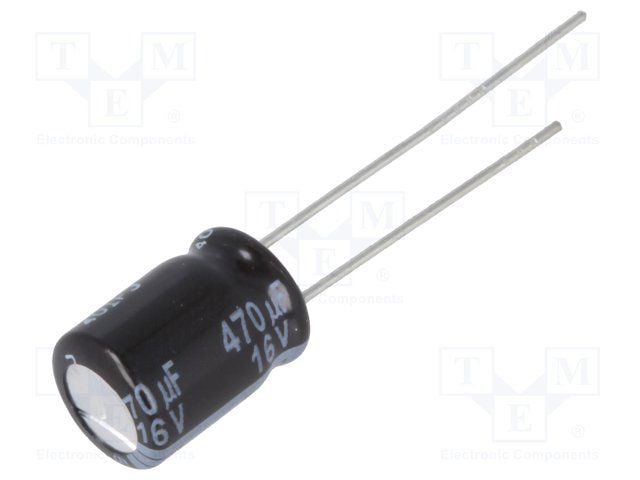

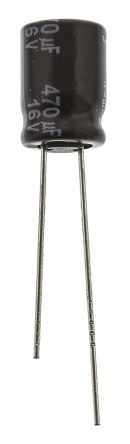

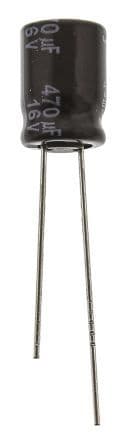

Product Images
