2200µF, 25V radial aluminum electrolytic capacitor with 20% tolerance. Features 17mΩ ESR and 3.3A ripple current capability, designed for operation from -40°C to 105°C. This through-hole component has a 7.5mm lead pitch and a 16mm diameter by 20mm height package, rated for 10,000 hours of life.
PackageRadial
Voltage25V
Capacitance2.2mF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEU-FR1E222S technical specifications.
General
| Capacitance | 2.2mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| ESR (Equivalent Series Resistance) | 17mR |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Impedance | 17mR |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Straight |
| Length | 20mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 3.3A |
| RoHS Compliant | Yes |
| Series | FR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FR1E222S Datasheet
Download the complete datasheet for Panasonic EEU-FR1E222S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

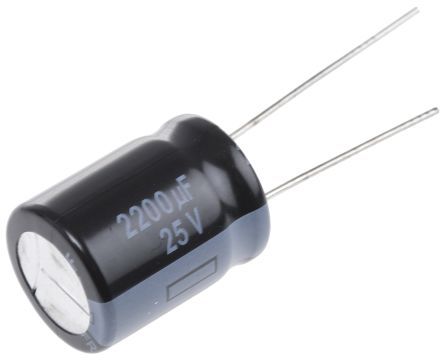

Product Images
