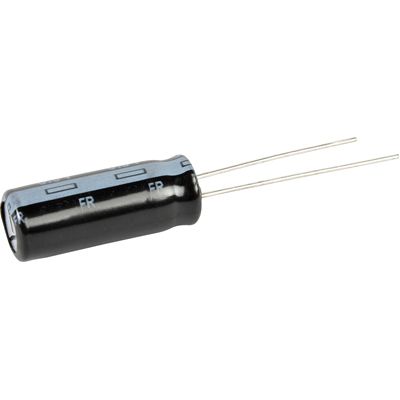

This 10mm radial aluminum electrolytic capacitor has a capacitance of 150uF and a DC rated voltage of 50V with a tolerance of 20%. It operates within a temperature range of -40°C to 105°C and has a dissipation factor of 0.1%. The capacitor is RoHS compliant and has a lead pitch of 5mm with a straight lead/base style and a length of 12.5mm. It is packaged in cut tape quantities of 500.
Sign in to ask questions about the Panasonic EEU-FR1H151B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEU-FR1H151B technical specifications.
| Capacitance | 150uF |
| Diameter | 10mm |
| Dissipation Factor | 0.1% |
| ESR (Equivalent Series Resistance) | 42mR |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Length | 12.5mm |
| Life (Hours) | 6000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Package Quantity | 500 |
| Packaging | Cut Tape |
| Ripple Current | 1.17A |
| RoHS Compliant | Yes |
| Series | FR |
| Termination | Radial |
| Tolerance | 20% |
| DC Rated Voltage | 50V |
| Weight | 0.056438oz |
| RoHS | Compliant |
