220µF, 50V radial aluminum electrolytic capacitor with 20% tolerance. Features 10% dissipation factor, 30mΩ ESR/impedance, and 1.65A ripple current. Operates from -40°C to 105°C with 8000-hour life. Through-hole mounting with 5mm lead pitch and 0.6mm lead diameter. RoHS compliant.
PackageRadial
Voltage50V
Capacitance220uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEU-FR1H221 technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Dielectric Material
Aluminium
Dissipation Factor
10%
ESR (Equivalent Series Resistance)
30mR
Height
16mm
Impedance
30mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Lead/Base Style
Straight
Leakage Current
110uA
Length
16mm
Life (Hours)
8000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
1.65A
RoHS Compliant
Yes
Series
FR
Termination
Radial
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FR1H221 Datasheet
Download the complete datasheet for Panasonic EEU-FR1H221 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

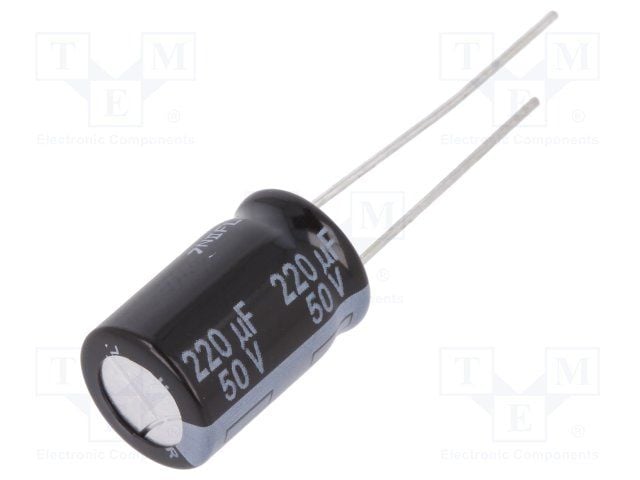

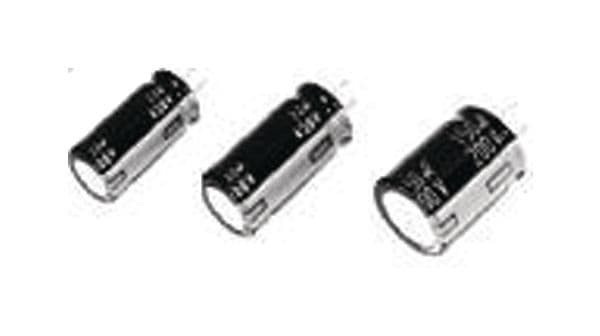

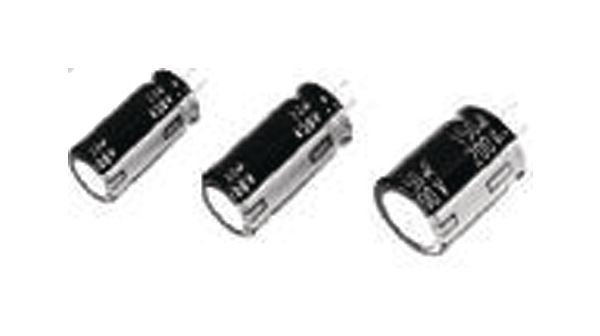

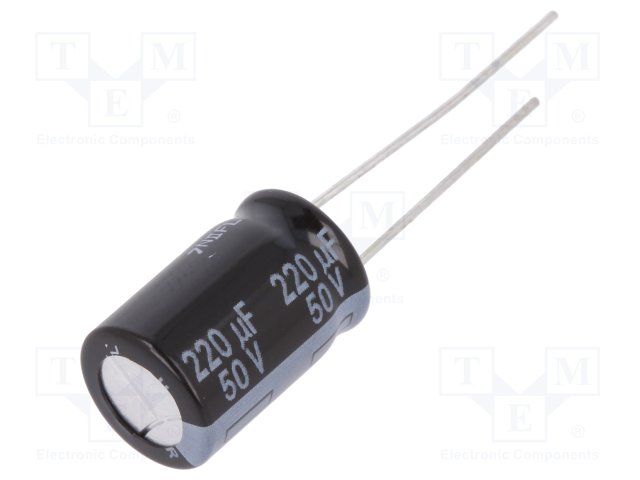

Product Images
