Aluminum electrolytic capacitor with 270µF capacitance and 50V DC rated voltage. Features 20% tolerance, 1.89A ripple current, and 23mΩ ESR. This radial component measures 10mm in diameter and 20mm in height, with a 5mm lead pitch. Designed for through-hole PCB mounting, it operates from -40°C to 105°C with a 10,000-hour life expectancy.
PackageRadial
Voltage50V
Capacitance270uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEU-FR1H271 technical specifications.
General
| Capacitance | 270uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 23mR |
| Height | 20mm |
| Impedance | 23mR |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Length | 20mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 1.89A |
| RoHS Compliant | Yes |
| Series | FR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FR1H271 Datasheet
Download the complete datasheet for Panasonic EEU-FR1H271 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

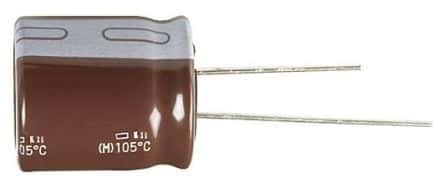

Product Images
