Aluminum electrolytic capacitor with 1000 µF capacitance and 35V DC rated voltage. Features 18mΩ ESR, 2.6A ripple current, and 10000 hours life at 105°C. Radial leaded construction with 5mm lead pitch, 0.6mm lead diameter, and 12.5mm diameter. Through-hole mounting for PCB applications, RoHS compliant, and lead-free.
PackageRadial
Voltage35V
Capacitance1mF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-FR1V102 technical specifications.
General
Capacitance
1mF
Package/Case
Radial
Construction
RADIAL
Diameter
12.5mm
Dissipation Factor
12%
ESR (Equivalent Series Resistance)
18mR
Height
20mm
Height - Seated (Max)
0.866inch
Impedance
18mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Lead/Base Style
Straight
Leakage Current
350uA
Length
20mm
Life (Hours)
10000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
2.6A
RoHS Compliant
Yes
Series
FR
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FR1V102 Datasheet
Download the complete datasheet for Panasonic EEU-FR1V102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

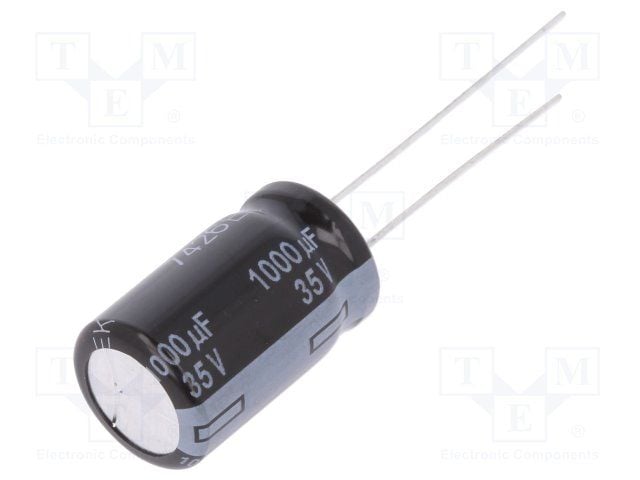

Product Images
