Aluminum electrolytic capacitor with 2200µF capacitance and 35V DC rated voltage. Features 20% tolerance, 12mΩ ESR, and 3.75A ripple current. Operates from -40°C to 105°C with a 10,000-hour lifespan. Radial package with 5mm lead pitch, 12.5mm diameter, and 35mm height. Through-hole mounting for PCB applications.
PackageRadial
Voltage35V
Capacitance2.2mF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-FR1V222L technical specifications.
General
Capacitance
2.2mF
Package/Case
Radial
Construction
RADIAL
Diameter
12.5mm
Dissipation Factor
14%
ESR (Equivalent Series Resistance)
12mR
Height
35mm
Impedance
12mR
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
5mm
Lead/Base Style
Straight
Leakage Current
770uA
Length
35mm
Life (Hours)
10000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
3.75A
Ripple Current (AC)
3.75A
RoHS Compliant
Yes
Series
FR
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FR1V222L Datasheet
Download the complete datasheet for Panasonic EEU-FR1V222L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

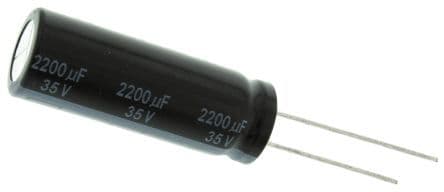

Product Images
