470µF radial aluminum electrolytic capacitor with a 35V DC voltage rating and 20% tolerance. Features a low 30mΩ ESR and impedance, suitable for general-purpose applications. Operates across a wide temperature range from -40°C to 105°C with a 9000-hour life expectancy. Designed for through-hole PCB mounting with a 5mm lead pitch and 0.6mm lead diameter. Rated for 1.56A ripple current and is RoHS compliant.
PackageRadial
Capacitance470uF
Voltage Rating35V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic EEU-FR1V471LB technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Diameter | 8mm |
| ESR (Equivalent Series Resistance) | 30mR |
| Features | General Purpose |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Impedance | 30mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Length | 20mm |
| Life (Hours) | 9000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.56A |
| RoHS Compliant | Yes |
| Series | FR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FR1V471LB Datasheet
Download the complete datasheet for Panasonic EEU-FR1V471LB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

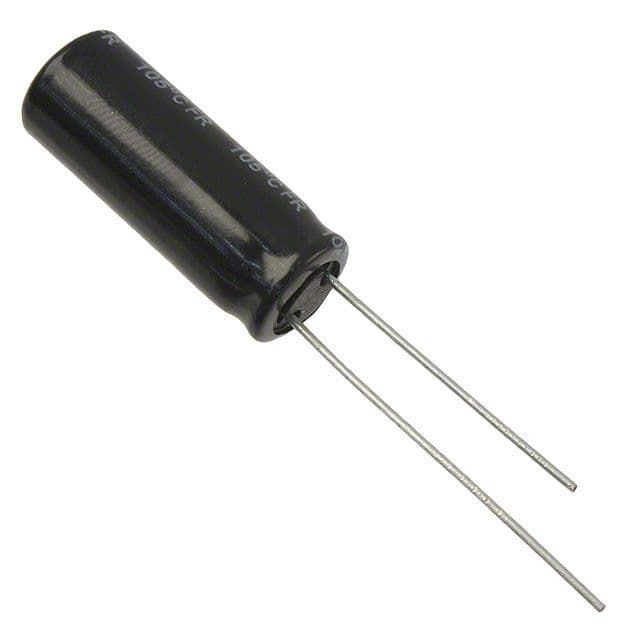

Product Images
