Radial aluminum electrolytic capacitor with 10,000µF capacitance and 10V DC rated voltage. Features a 20% tolerance, 105°C maximum operating temperature, and 2000-hour life. The component has a 16mm diameter, 25mm height, and 7.5mm lead pitch, suitable for through-hole mounting. Ripple current rating is 1.89A.
PackageRadial
Voltage10V
Capacitance10mF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEU-HD1A103 technical specifications.
General
| Capacitance | 10mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Height | 25mm |
| Height - Seated (Max) | 1.063inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Straight |
| Length | 25mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 1.89A |
| Ripple Current (AC) | 1.89A |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-HD1A103 Datasheet
Download the complete datasheet for Panasonic EEU-HD1A103 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

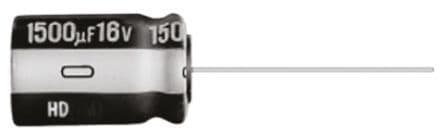

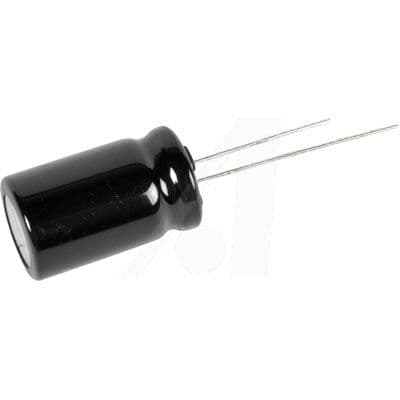

Product Images
