Radial aluminum electrolytic capacitor with 4.7mF capacitance and 10V DC rated voltage. Features a 20% tolerance, 105°C maximum operating temperature, and a 2000-hour life at rated voltage. This through-hole component has a 5mm lead pitch, 0.6mm lead diameter, and a 12.5mm diameter by 20mm height radial package. Ripple current is rated at 1.26A.
PackageRadial
Voltage10V
Capacitance4.7mF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEU-HD1A472 technical specifications.
General
| Capacitance | 4.7mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Length | 20mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 1.26A |
| Ripple Current (AC) | 1.26A |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-HD1A472 Datasheet
Download the complete datasheet for Panasonic EEU-HD1A472 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

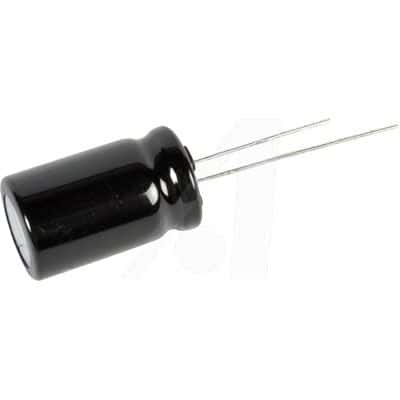

Product Images
