Radial aluminum electrolytic capacitor with 15,000µF capacitance and 20% tolerance. Features a 16V DC rated voltage, 2.21A ripple current, and a 2000-hour life at 105°C. Dimensions include an 18mm diameter, 35.5mm height, 7.5mm lead pitch, and 0.8mm lead diameter. Through-hole mounting with straight leads.
PackageRadial
Voltage16V
Capacitance15mF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEU-HD1C153 technical specifications.
General
Capacitance
15mF
Package/Case
Radial
Construction
RADIAL
Diameter
18mm
Height
35.5mm
Height - Seated (Max)
1.476inch
Lead Diameter
0.8mm
Lead Pitch
7.5mm
Lead/Base Style
Straight
Length
35.5mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
2.21A
Ripple Current (AC)
2.21A
RoHS Compliant
Yes
Series
HD
Termination
Radial
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-HD1C153 Datasheet
Download the complete datasheet for Panasonic EEU-HD1C153 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

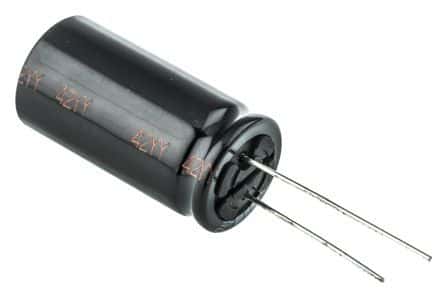

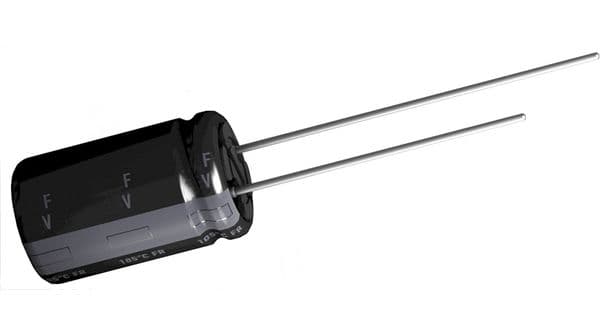

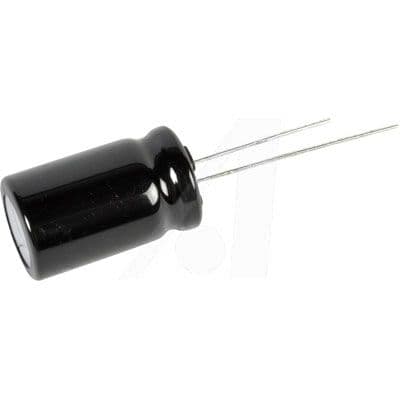

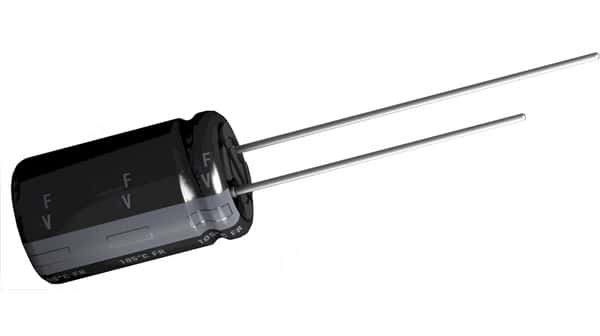

Product Images
