1000µF, 25V radial aluminum electrolytic capacitor with 20% tolerance. Features 680mA ripple current, 250µA leakage current, and a lifespan of 2000 hours at 105°C. Operating temperature range is -55°C to 105°C. Radial construction with 5mm lead pitch and 0.6mm lead diameter for through-hole PCB mounting.
PackageRadial
Voltage25V
Capacitance1mF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEU-HD1E102 technical specifications.
General
Capacitance
1mF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Height
16mm
Lead Diameter
0.6mm
Lead Pitch
5mm
Lead/Base Style
Straight
Leakage Current
250uA
Length
16mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Reach SVHC Compliant
No
Ripple Current
680mA
Ripple Current (AC)
680mA
RoHS Compliant
Yes
Series
HD
Termination
Radial
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-HD1E102 Datasheet
Download the complete datasheet for Panasonic EEU-HD1E102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

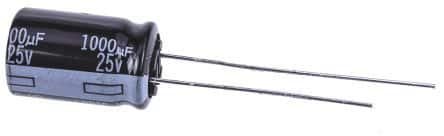

Product Images
