2200µF, 25V radial aluminum electrolytic capacitor with 20% tolerance. Features a 1.09A ripple current rating and a maximum operating temperature of 105°C. Designed for general purpose applications with a 5mm lead pitch and 0.6mm lead diameter. Through-hole mounting on PCBs.
PackageRadial
Capacitance2.2mF
Voltage Rating25V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic EEU-HD1E222B technical specifications.
General
Capacitance
2.2mF
Package/Case
Radial
Diameter
12.5mm
Features
General Purpose
Height
20mm
Height - Seated (Max)
0.866inch
Lead Diameter
0.6mm
Lead Pitch
5mm
Lead/Base Style
Straight
Length
20mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
500
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Ripple Current
1.09A
RoHS Compliant
Yes
Series
HD
Termination
Radial
Tolerance
20%
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-HD1E222B Datasheet
Download the complete datasheet for Panasonic EEU-HD1E222B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

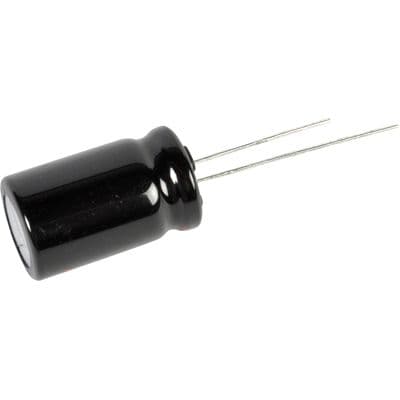

Product Images
