Aluminum electrolytic capacitor, 10µF capacitance, 50V voltage rating, 20% tolerance. Features a 1000-hour life at 105°C, with a ripple current of 39mA. Radial package with 2.5mm lead pitch, 5mm diameter, and 11mm height. Through-hole mounting, RoHS compliant, and lead-free.
PackageRadial
Voltage50V
Capacitance10uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEU-HD1H100 technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| Height | 11mm |
| Height - Seated (Max) | 0.492inch |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Lead/Base Style | Straight |
| Length | 11mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 39mA |
| Ripple Current (AC) | 39mA |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-HD1H100 Datasheet
Download the complete datasheet for Panasonic EEU-HD1H100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

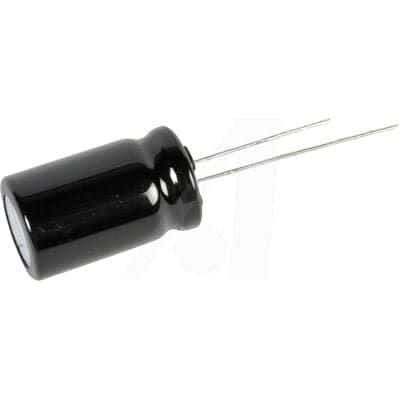

Product Images
