Aluminum electrolytic capacitor with 4.7µF capacitance and 50V DC rated voltage. Features a 20% tolerance and radial termination in a 5mm diameter by 11mm height package. Designed for through-hole mounting with a 2.5mm lead pitch and 0.5mm lead diameter. Operates across a -55°C to 105°C temperature range with a 1000-hour life at rated conditions and 26mA ripple current. RoHS compliant and lead-free.
PackageRadial
Voltage50V
Capacitance4.7uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEU-HD1H4R7 technical specifications.
General
| Capacitance | 4.7uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| Height | 11mm |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Lead/Base Style | Straight |
| Length | 11mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 26mA |
| Ripple Current (AC) | 26mA |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-HD1H4R7 Datasheet
Download the complete datasheet for Panasonic EEU-HD1H4R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

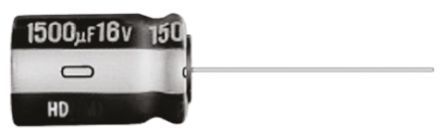

Product Images
