PackageRadial
Capacitance3.3mF
Voltage Rating35V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic EEU-HD1V332B technical specifications.
General
| Capacitance | 3.3mF |
| Package/Case | Radial |
| Diameter | 16mm |
| Features | General Purpose |
| Height - Seated (Max) | 1.063inch |
| Lead Pitch | 0.295inch |
| Lead/Base Style | Straight |
| Length | 25mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ripple Current | 1.61A |
| Series | HD |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-HD1V332B Datasheet
Download the complete datasheet for Panasonic EEU-HD1V332B to view detailed technical specifications.
No datasheet is available for this part.

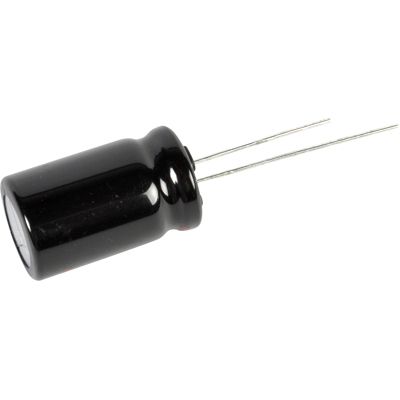

Product Images
