General purpose radial aluminum electrolytic capacitor with 680µF capacitance and 35V voltage rating. Features a 20% tolerance, 460mA ripple current, and a 2000-hour life at 105°C. Dimensions are 10mm diameter by 16mm height, with a 5mm lead pitch. Through-hole mounting with straight radial leads.
PackageRadial
Voltage35V
Capacitance680uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-HD1V681 technical specifications.
General
Capacitance
680uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Features
General Purpose
Height
16mm
Height - Seated (Max)
0.689inch
Lead Diameter
0.6mm
Lead Pitch
5mm
Lead/Base Style
Straight
Length
16mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Reach SVHC Compliant
No
Ripple Current
460mA
Ripple Current (AC)
460mA
RoHS Compliant
Yes
Series
HD
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-HD1V681 Datasheet
Download the complete datasheet for Panasonic EEU-HD1V681 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

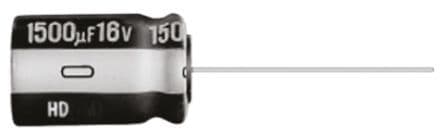

Product Images
