High-performance aluminum electrolytic capacitor with 100µF capacitance and 35V DC rated voltage. Features a 20% tolerance, 180mΩ ESR, and 555mA ripple current capability. Designed for through-hole mounting with radial leads, this capacitor operates from -40°C to 125°C with a 2000-hour life rating at 125°C. Its construction includes an aluminum dielectric and a radial package measuring 10mm in diameter and 12.5mm in height.
PackageRadial
Voltage35V
Capacitance100uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-TA1V101 technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 180mR |
| Height | 12.5mm |
| Height - Seated (Max) | 0.531inch |
| Impedance | 180mR |
| Lead Diameter | 0.6mm |
| Lead Length | 17mm |
| Lead Pitch | 5mm |
| Leakage Current | 35uA |
| Length | 12.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 555mA |
| RoHS Compliant | Yes |
| Series | TA |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-TA1V101 Datasheet
Download the complete datasheet for Panasonic EEU-TA1V101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

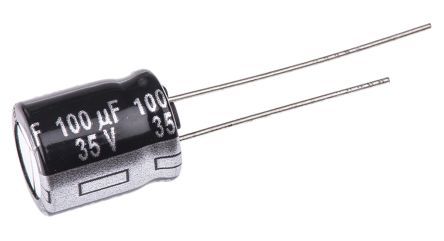

Product Images
