Radial aluminum electrolytic capacitor with 3300µF capacitance and 25V DC rated voltage. Features a 20% tolerance, 18mΩ ESR, and 2.71A ripple current. Operating temperature range is -40°C to 135°C with a 2000-hour life expectancy. Through-hole mounting with a 7.5mm lead pitch and 0.8mm lead diameter. RoHS compliant.
PackageRadial
Voltage25V
Capacitance3.3mF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEU-TP1E332 technical specifications.
General
Capacitance
3.3mF
Package/Case
Radial
Construction
RADIAL
Diameter
16mm
ESR (Equivalent Series Resistance)
18mR
Height
31.5mm
Height - Seated (Max)
1.319inch
Lead Diameter
0.8mm
Lead Pitch
7.5mm
Lead/Base Style
Straight
Leakage Current
825uA
Length
31.5mm
Life (Hours)
2000Hour
Max Operating Temperature
135°C
Min Operating Temperature
-40°C
Mount
Through Hole
Outside Diameter
16mm
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Ripple Current
2.71A
Ripple Current (AC)
3.25A
RoHS Compliant
Yes
Series
TP
Termination
Radial
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-TP1E332 Datasheet
Download the complete datasheet for Panasonic EEU-TP1E332 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

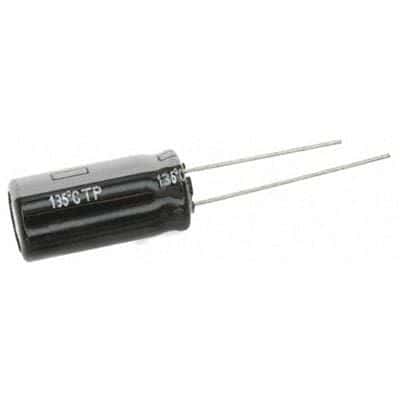

Product Images
