PackageRadial
Capacitance3.3mF
Voltage Rating25V
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EEU-TP1E332SB technical specifications.
General
| Capacitance | 3.3mF |
| Package/Case | Radial |
| Diameter | 18mm |
| ESR (Equivalent Series Resistance) | 20mR |
| Features | General Purpose |
| Height | 25mm |
| Height - Seated (Max) | 1.063inch |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Straight |
| Length | 25mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 135°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Ammo Pack |
| Radiation Hardening | No |
| Ripple Current | 2.47A |
| Series | TP |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-TP1E332SB Datasheet
Download the complete datasheet for Panasonic EEU-TP1E332SB to view detailed technical specifications.
No datasheet is available for this part.

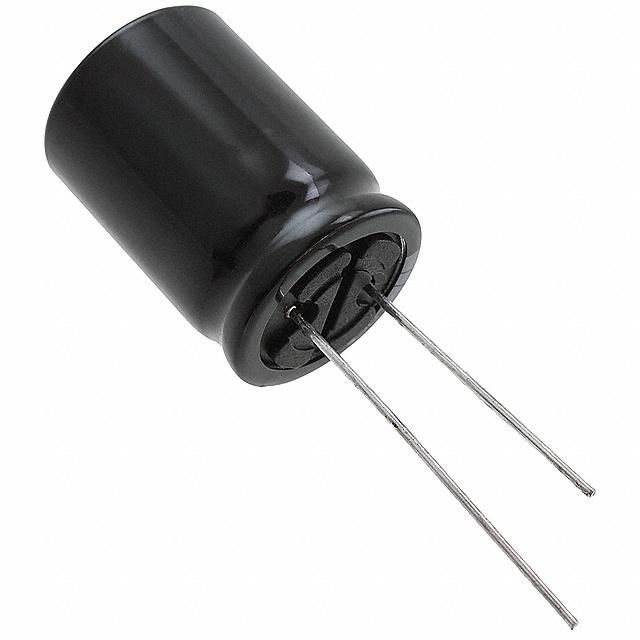

Product Images
