Aluminum electrolytic capacitor with 1.5mF capacitance and 35V DC rated voltage. Features 20% tolerance, 2.25A ripple current, and low 28mR ESR. Radial package measures 18mm diameter by 20mm height with 7.5mm lead pitch. Operating temperature range from -40°C to 135°C, with a 2000-hour life rating. Through-hole mounting, RoHS compliant, and AEC-Q200 rated.
PackageRadial
Voltage35V
Capacitance1.5mF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-TP1V152S technical specifications.
General
| Capacitance | 1.5mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| ESR (Equivalent Series Resistance) | 28mR |
| Height | 20mm |
| Lead Diameter | 0.8mm |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 525uA |
| Length | 20mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 135°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Outside Diameter | 18mm |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 2.25A |
| Ripple Current (AC) | 2.7A |
| RoHS Compliant | Yes |
| Series | TP |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-TP1V152S Datasheet
Download the complete datasheet for Panasonic EEU-TP1V152S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

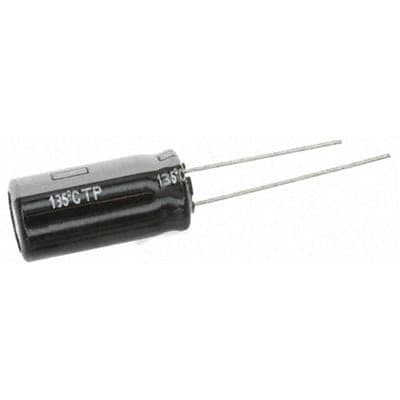

Product Images
