Radial aluminum electrolytic capacitor with 35V DC rated voltage and 1.8mF capacitance. Features 16mm diameter, 31.5mm height, and 7.5mm lead pitch. Offers 18mR ESR, 2.71A ripple current, and a 2000-hour life at 135°C. RoHS compliant with a 20% tolerance.
PackageRadial
Voltage35V
Capacitance1.8mF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-TP1V182 technical specifications.
General
| Capacitance | 1.8mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| ESR (Equivalent Series Resistance) | 18mR |
| Features | General Purpose |
| Height | 31.5mm |
| Height - Seated (Max) | 1.319inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 630uA |
| Length | 31.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 135°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Outside Diameter | 16mm |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 2.71A |
| Ripple Current (AC) | 3.25A |
| RoHS Compliant | Yes |
| Series | TP |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-TP1V182 Datasheet
Download the complete datasheet for Panasonic EEU-TP1V182 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

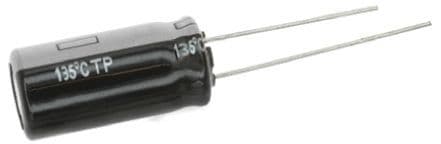

Product Images
