Aluminum electrolytic capacitor, 270µF capacitance, 35V voltage rating, and 20% tolerance. Features a radial package with a 5mm lead pitch, 10mm diameter, and 16mm height. Offers 130mΩ ESR, 945mA ripple current, and a maximum operating temperature of 135°C. Rated for 2000 hours of life.
PackageRadial
Voltage35V
Capacitance270uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-TP1V271 technical specifications.
General
| Capacitance | 270uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| ESR (Equivalent Series Resistance) | 130mR |
| Height | 16mm |
| Height - Seated (Max) | 0.689inch |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Leakage Current | 94.5uA |
| Length | 16mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 135°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Outside Diameter | 10mm |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 945mA |
| Ripple Current (AC) | 1.1A |
| RoHS Compliant | Yes |
| Series | TP |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-TP1V271 Datasheet
Download the complete datasheet for Panasonic EEU-TP1V271 to view detailed technical specifications.
No datasheet is available for this part.

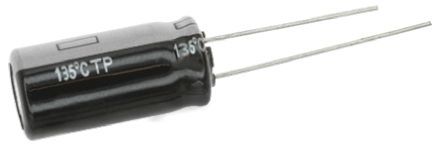

Product Images
