270µF radial aluminum electrolytic capacitor with a 35V DC rating and 20% tolerance. Features a low ESR of 67mΩ, ripple current capability of 1.06A, and a lifespan of 1000 hours at 135°C. Operating temperature range is -40°C to 135°C. Through-hole mounting with a 3.5mm lead pitch and 0.6mm lead diameter.
PackageRadial
Voltage35V
Capacitance270uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-TP1V271L technical specifications.
General
| Capacitance | 270uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| ESR (Equivalent Series Resistance) | 67mR |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Lead Diameter | 0.6mm |
| Lead Pitch | 3.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 94.5uA |
| Length | 20mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 135°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Outside Diameter | 8mm |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 760mA |
| Ripple Current (AC) | 1.06A |
| RoHS Compliant | Yes |
| Series | TP |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-TP1V271L Datasheet
Download the complete datasheet for Panasonic EEU-TP1V271L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

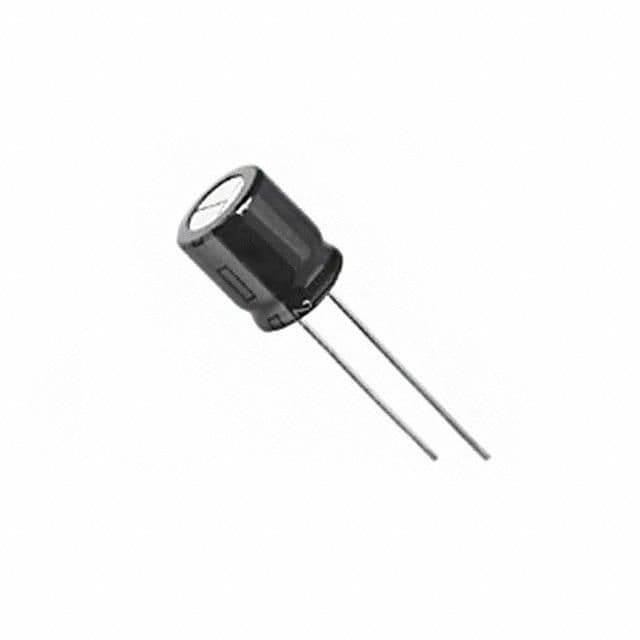

Product Images
