Radial aluminum electrolytic capacitor with 470µF capacitance and 35V voltage rating. Features 20% tolerance, 38mΩ ESR, and 1.49A ripple current. Operates from -40°C to 135°C with a 2000-hour life expectancy. Through-hole mounting with a 5mm lead pitch and 0.6mm lead diameter. RoHS compliant.
PackageRadial
Voltage35V
Capacitance470uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-TP1V471 technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
RADIAL
Diameter
12.5mm
ESR (Equivalent Series Resistance)
38mR
Height
20mm
Height - Seated (Max)
0.866inch
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Lead/Base Style
Straight
Leakage Current
164.5uA
Length
20mm
Life (Hours)
2000Hour
Max Operating Temperature
135°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Outside Diameter
12.5mm
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
1.49A
Ripple Current (AC)
1.86A
RoHS Compliant
Yes
Series
TP
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-TP1V471 Datasheet
Download the complete datasheet for Panasonic EEU-TP1V471 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

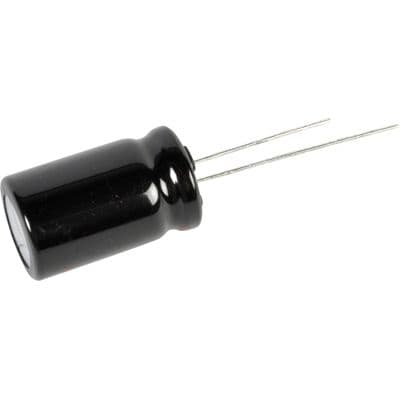

Product Images
