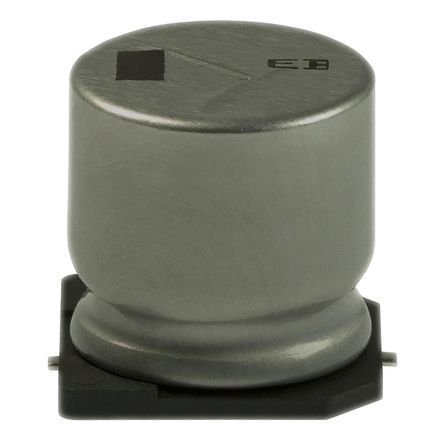

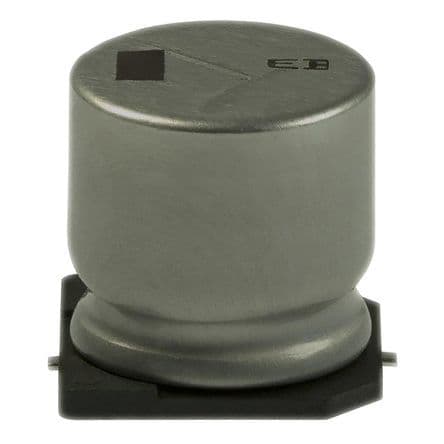

4.7uF radial aluminum electrolytic capacitor with a 400V DC rating and 20% tolerance. Features a 10mm diameter, 16.5mm height, and 4.6mm lead pitch, designed for surface mount applications with a 4000-hour life at 105°C. This RoHS compliant component offers a leakage current of 122.8uA and a ripple current of 50mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EEV-EB2G4R7Q datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEV-EB2G4R7Q technical specifications.
| Capacitance | 4.7uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Height | 16.5mm |
| Lead Free | Lead Free |
| Lead Length | 3.5mm |
| Lead Pitch | 4.6mm |
| Leakage Current | 122.8uA |
| Length | 17.5mm |
| Life (Hours) | 4000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 200 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 50mA |
| Ripple Current (AC) | 50mA |
| RoHS Compliant | Yes |
| Series | EB |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
| Width | 900um |
| RoHS | Compliant |
