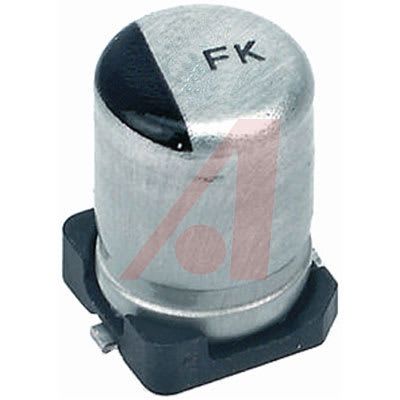

Surface mount aluminum electrolytic capacitor with 3300µF capacitance and 20% tolerance. Features a 16V DC rated voltage, 1.8A ripple current, and low ESR of 35mΩ. Operates from -55°C to 105°C with a 5000-hour life expectancy. Cylindrical construction with radial leads, measuring 16mm in diameter and 16.5mm in height. RoHS compliant and lead-free.
Sign in to ask questions about the Panasonic EEV-FK1C332M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEV-FK1C332M technical specifications.
| Capacitance | 3.3mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 16mm |
| ESR (Equivalent Series Resistance) | 35mR |
| Height | 16.5mm |
| Height - Seated (Max) | 0.65inch |
| Impedance | 35mR |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 17mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.8A |
| Ripple Current (AC) | 1.8A |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 1.2mm |
| RoHS | Compliant |
Download the complete datasheet for Panasonic EEV-FK1C332M to view detailed technical specifications.
