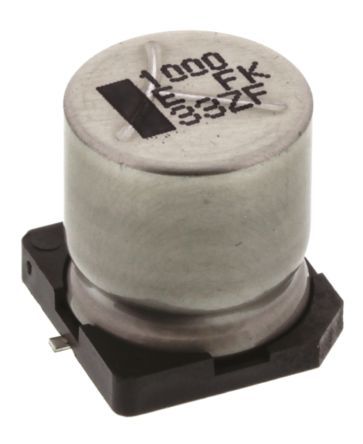

1000µF, 25V radial aluminum electrolytic capacitor with 20% tolerance. Features 60mΩ ESR, 1.1A ripple current, and 3µA leakage current. Operates from -55°C to 105°C with a 5000-hour lifespan. Surface mountable in a cylindrical case with SMD/SMT termination, packaged on tape and reel. AEC-Q200 rated and RoHS compliant.
Sign in to ask questions about the Panasonic EEV-FK1E102Q datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEV-FK1E102Q technical specifications.
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 12.5mm |
| Dissipation Factor | 0.14% |
| ESR (Equivalent Series Resistance) | 60mR |
| Height | 13.5mm |
| Impedance | 60mR |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 13.5mm |
| Life (Hours) | 5000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 200 |

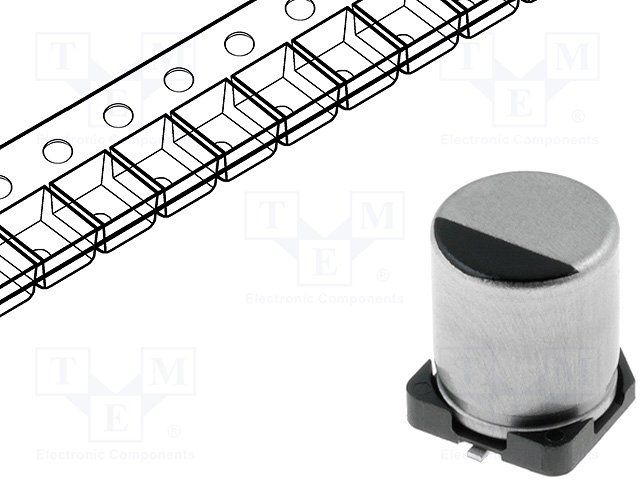

| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 1.1A |
| Ripple Current (AC) | 1.1A |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 900um |
| RoHS | Compliant |
